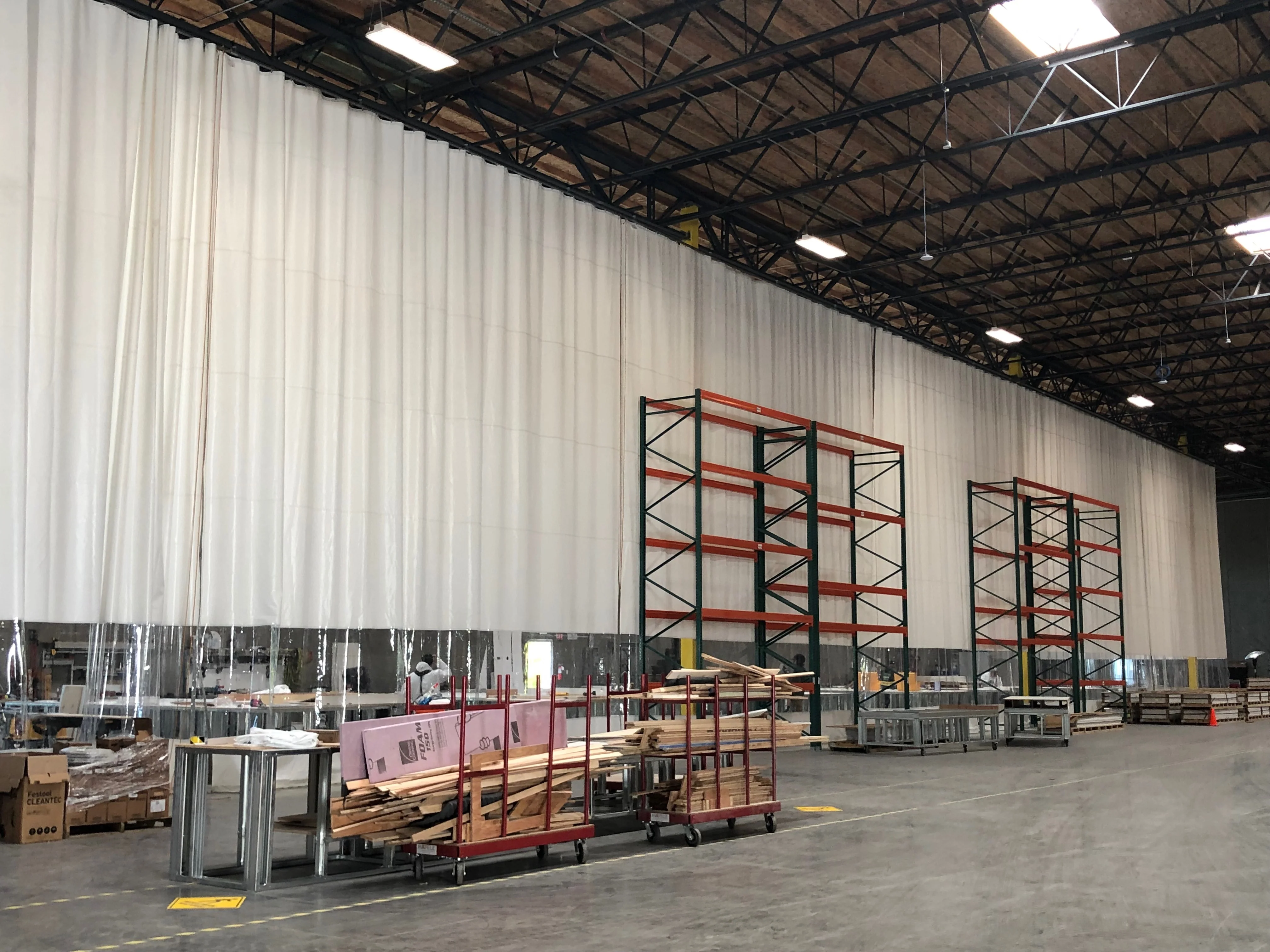

Heavy Duty Insulated Warehouse Curtain Walls for Temperature Separation

Strong Arm's insulated warehouse curtain walls create efficient thermal barriers for freezers, coolers, loading docks, food processing facilities, and ambient temperature separation zones — at a fraction of the cost of permanent insulated walls. Double-paneled and collapsible, each curtain features exterior 18 oz. PVC coated vinyl lined inside with two layers of 3M Thinsulate Ultra for proven insulation performance across a range of R-values. Every panel is NFPA-701 fire rated and proudly made in the USA.

Unlike rigid insulated walls, our heavy duty thermal curtain dividers fold down to just one-third of their size — making it easy to move machinery, forklifts, and large equipment through without removing the system. Panels are modular and connect together with inline track connectors and Velcro attachments for full-width coverage across any bay size. Part of our full industrial curtain walls collection.

Insulated Warehouse Curtain Features

• R-3 to R-9 insulation values — custom R-values available up to R-15 for stationary installations
• Double-paneled construction: 18 oz. exterior vinyl + 2 layers 3M Thinsulate Ultra interior
• Retracts to 1/3 of original size for forklift and equipment access
• 5-foot-wide standard panels — modular, connect multiple panels for full separation

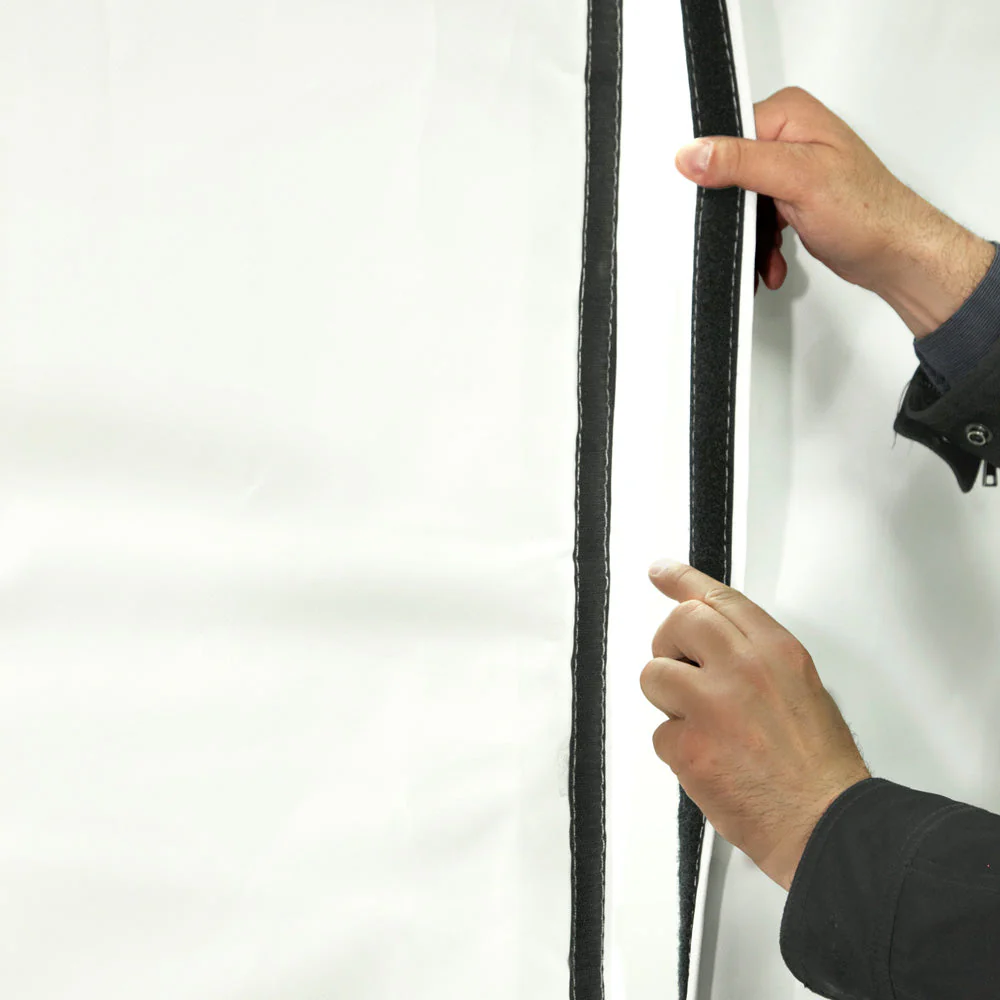

• Grommets 12" on center on top, full Velcro hook & loop side attachments for panel connections
• Chain weighted hem on bottom for a tight floor seal
• Available with rolling track hardware for retractable use or static grommets/angle iron for fixed installations
• Resistant to water, chemicals, grinding, dust, and fumes
• Can maintain temperature separation of up to 35°F between zones
• 6-year warranty on all curtain wall systems — made in the USA
• Ships in 15–20 business days

Applications for Insulated Curtain Walls

These heavy duty thermal insulated curtains are ideal across a wide range of industrial and commercial environments. Common uses include freezer and cooler separation, loading dock temperature control, ambient storage partitioning, food processing plant zoning, cold storage dividers, pharmaceutical temperature zones, and warehouse tenant room separation. If your facility needs to maintain distinct temperature zones without permanent construction, insulated curtain walls are the fastest and most cost-effective solution.

Need a Custom Size or Layout?

Our stocked insulated curtain walls cover standard bay sizes in R-3 and R-6 ratings. For non-standard dimensions, higher R-values, or complex multi-panel layouts, use our Custom Insulated Warehouse Curtain Wall Configurator to design your exact system. For track hardware kits, visit our Curtain Track & Hardware collection — or buy track hardware kits separately here.
